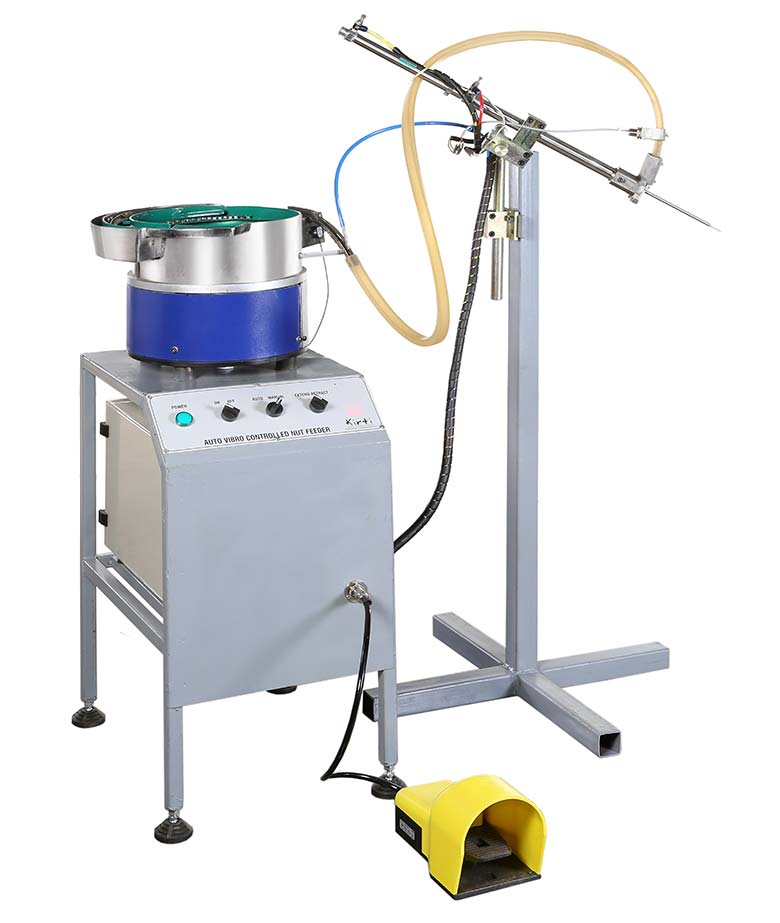

Weld Nut / Bolt Feeder

Auto Vibro Controlled
Weld Nut / Bolt Feeder


Inertial nut feeding system – superior performance & easy maintenance


  • 2.5 times bigger bowl
  • Feedback type vibratory controller which sets vibrations according to number of nuts available
  • Inertial nut feeding system – superior performance and easy maintenance
  • Various functions pre-programmed in PLC
  • Precise placement of nuts
    High feed rates up to 80 nuts/minute
  • Bowl design ensures only the correct size nut gets passed
  • Can be easily fitted with nut hopper

Technical Specifications


Various designs of feeder available according to different sizes and shapes of fasteners.



Parameter Specifications
Models Available M5, M6, M8, M10, M12 each nut / bolt needs separate feeder. Also available for special nuts and bolts
Bowl Size 300 mm diameter stainless steel bowl
with special coating
Feeding Capacity 50 to 80 nuts per minute
Cylinder Stroke (Shooting Unit) 150 mm or 200 mm
Vibratory Bowl Controller Closed Loop Feedback type with vibration sensor
Control system PLC with inbuilt display
Input Voltage AC 220 V +/-10%, 50/60 Hz
Dimensions 1100mm(H) x 460mm(L) x 440mm(W)
Weight 100 Kg
Maximum Input Current 3 Amperes
Pressure 0.6 Mpa (6 Bar)
Air Supply Tube 10 mm internal diameter spatter proof tubing
